MG SOLAR WATER HEATING DEVICE
Muricken's Group providing a complete solution for getting natural hot water with the help of sunlight by introducing "MG Solar Water Heater". There are two type of Solar Water Heater is available in Kerala which are:- "Flat Plate Collector" (FPC) and "Evacuated Tube Collectors" (ETC). Flat Plate Collector by using copper tubes which is long lasting and this is a common type solar water heater and it is the most suitable type for Kerala's climatic condition and get 80°C hot water with the help of normal sunlight. Evacuated Tube Collectors (ETC) which are made up of rows of parallel, transparent glass tubes. The disadvantage of ETC model are, we get only very low temperature, that is heat up 40 ± 5°C, water leakage through glass sealing, chance of brakeage of tubes when it is exposed to sunlight, chance to catch fungus inside the tube and consequently lower the heat of water. During rainy season, must use electrical heater. The 3rd one coming shortly in market is known as "Concentrating Collector" (CC) type. We arrange MNRE ( ministry of natural renewable energy ) Central government subsidies for ETC and FPC model solar water heaters.
We have made a place of our own in the field of solar based power units since our installation in 2000 and have done thousands of solar power unit installations in many places including The Agricultural University, Malapuram, Government of Kerala,The CISF 7th battalion military camp, The International Airport, Karipoor, ISRO Sreeharikotta, Marine Fisheries Dept of India, Vallarpadam Container Terminal (IGTPL), TCS Info Park Cochin etc which are only a few among our valued and reputed clients. This also may kindly be viewed very seriously that any installation of this type should be undertaken only under the supervision of a qualified and experienced technician for the smooth and trouble free functioning of the system and to avoid unplesant situations.
MG SOLAR WATER HEATER FEATURES:
* Maintenance free. * Water heated up to 80°C. * No electrical hazard. * No expenses after installation. * The best way of getting natural hot water for cooking and industrial purpose. * Copper capillaries. * P U F system and glass wool to avoid conduction loss for storage tank. * Light weight. * T I G welded fins and tubes. * Compact in size. * Heat expulsion. * Fully automatic. * High quality tempered 4mm thick front glass. * Sturdy and weather proof design. * Different Capacity starting from 125 liters to 1000 liters. * Custom built Solar Water Heater can also be provided. * Two models FPC and ETC. * In FPC special model we can connect pressure pump.
APPLICATIONS:
* In Restaurants, Clubs & Resorts. * In Hospitals, Hostels, Institutions. * In Canteens and Laundries. * For Swimming pool water heating. * In most Process Industries. * In Green buildings to earn renewable energy points. * As it feed hot water to Boilers. * Can washing at Dairy collection centers. * General washing & cleaning purposes. * In Agricultural sector.

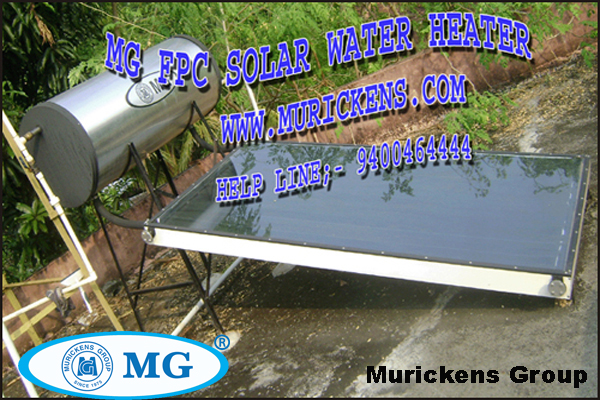

TECHNICAL FATURES OF SOLAR MG FPC (copper ) WATER HEATER
| MG solar water heater FPC model |
125 |
150 |
250 |
500 |
| Usage No. of person |
5 or 6 |
6 or 7 |
10 |
12 |
| Installation Area(sq. mt) |
4 |
4.5 |
8 |
16 |
| Water output temp. (° C) |
85 ± 5 °C under normal Sunny conditions |
| FPC capillary tube Model: |
|
| No. fins |
9 |
9 |
18 |
36 |
| Collector Material |
Copper |
|
|
| Coating |
Extruded Aluminum Powder Coated |
| Collector Size |
2050 mm x 1050 mm x100 mm |
| Insulation |
48 Kg/Cu,metre density Rock wool slab for standard model |
| box back sheet |
Aluminum sheet |
|
|
| Coating |
Selective black chrome – Nalsun |
| Insulation cover material |
Aluminum sheet |
| Bonding between fin and riser |
Metallurgical bonding |
| Header |
99.9 % copper 1” , 22 SWG |
| Riser |
99.9 % copper ½ “ 24 SWG |
|
|
| Tank type |
Cylindrical – horizontal |
| Tank material (Inner) |
Stainless Steel SS 304 (Food Grade) - 0.9 mm |
| Insulating material for tank |
48 Kg/Cu,metre density Rock wool slab for standard model |
| Electric Heater (optional) |
No need - if need 2KW |
| Pressure pump model is available *Specifications are subject to change without prior notice". |

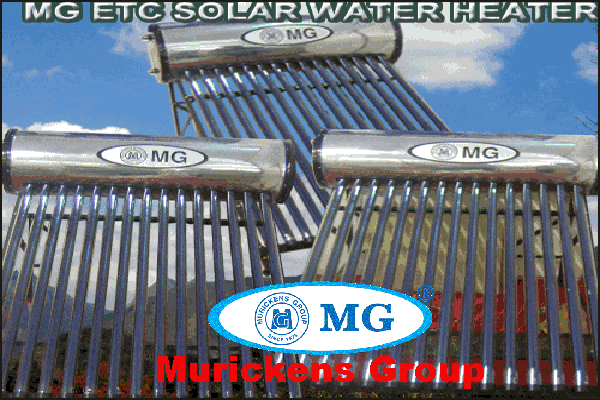

MG ETC SOLAR WATER HEATER TECHNICALSPECIFICATION
| MG Solar Water Heater ETC Model |
100 |
150 |
200 |
250 |
| Usage No. of person |
3 or 4 |
5 or 6 |
8 |
10 |
| Installation Area(sq. mt) |
2.1 |
3.1 |
3.8 |
4.7 |
| Water output temp. (° C) |
40 ± 5 °C Under Normal Sunny Conditions |
| ETC tube Model: No. of Tubes |
14 |
20 |
28 |
34 |
| Material |
Glass 3.3 |
| Coating |
Selective Absorptive Coating |
| Glass Sealing |
Silicon Rubber |
| Hot Water Tank material (Inner) |
Stainless Steel SS 304 (Food Grade) - 0.5 mm |
| Thermal Insulation |
PUF Insulation |
| Electric Heater (optional) |
2.0 KW with Thermostat |
