► Specially designed for solar applications. ►Suitable for frequent cycle duty. ► Efficiency 90%. ►Manufactured and assembled with top quality Rugged Hard Rubber Mono-Block Containers with handle for easy lifting. ► Tubular positive Grid cast with special alloy. ► Designed with extra electrolyte head for long frequency topping up. ► Micro porous PVC Aqua Trap Vent Plugs and Corrosion-Resistant Alloy prevents corrosion and acid fumes being emitted. ► Specially designed for smooth and trouble free long life. ► Three-year Warranty. ► Low maintenance. ► c-10 and c-20 series batteries ► Heat sealed process help for trouble free working. ► Flyline lead acid batteries maintain the highest level ISO 9001- 2015 certification
TECHNICAL FEATURES
FLYLINE SOLAR SPECIAL C10 and C20 TUBULAR BATTERY | |||||||||
Capacity Power |
Dimension ( +/5 mm) | Weight (kg+/-5%) | Volume Electrolyte |
Initial charge minimum AH input |
Volts | Gravity | |||
Length | Width | Height | Dry | Filed | |||||
120 AH | 20" | 8" | 18.5" | 28,3 | 64.3 | 24.6 | 450 | 12 V | (1.220 Sp. Gr) |
150 AH | 20" | 8" | 18.5" | 33.5 | 60.01 | 23.6 | 540 | 12 V | (1.220 Sp. Gr) |
200 AH | 20" | 8" | 18.5" | 45 | 72 | 21.4 | 720 | 12 V | (1.220 Sp. Gr) |

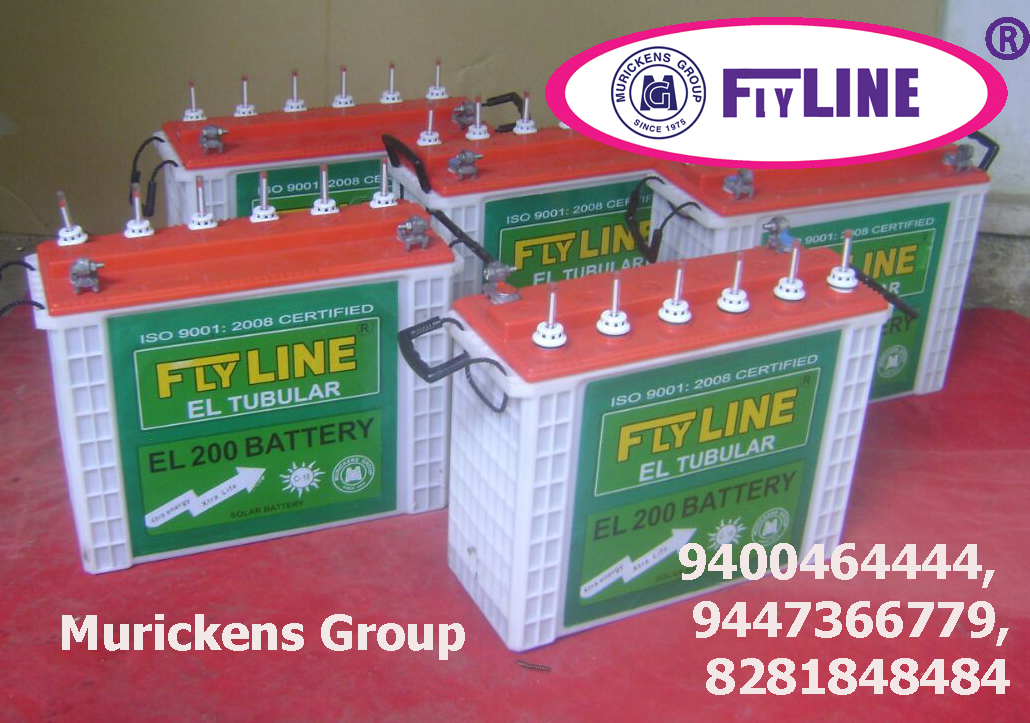

Flyline Tubular Battery pictures:-Click Here
